The Note Properties Argument

When you play a note in SCAMP, in addition to providing a pitch, volume and duration, you can provide an optional fourth argument consisting of various additional note properties:

• articulations, such as staccato/legato

• notations, such as ornaments, fermatas, tremolo, etc.

• noteheads, such as diamond, x, etc.

• spanners, such as text brackets, hairpins, pedal markings, etc.

• dynamics, such as f, p, fp

• texts, such as expressive and technique markings

• playback_adjustments, which allow the playback of a note to differ from its notation. (For example, you might obtain a legato effect by making the note last longer than notated so that it overlaps with the next note.)

• spelling_policy, which determines how pitches are spelled

• voice, which determines which voice a note gets placed in when generating notation.

• extra_playback_parameters, which can be used to control MIDI CC messages, as well as arbitrary synthesis parameters when a method of playback supports such parameters.

What you pass to the properties argument can take a number of different forms, all of which are ultimately converted into a NoteProperties object:

• A string of comma-separated property descriptions

• A single subtype of NoteProperty, such as a SpellingPolicy, StaffText, NotePlaybackAdjustment, or any of the Spanner subtypes.

• A dictionary with keys “articulations”, “noteheads”, “notations”, etc.

• a NoteProperties object itself

• A list of any of the the above, which get merged into a single NoteProperties

In practice, the easiest way to use the properties argument is by passing a string, which acts as a kind of shorthand. For example, if you simply pass the string, “tenuto”, SCAMP will interpret this as an articulation. Thus, the following are equivalent:

inst.play_note(60, 1, 1, "tenuto")
inst.play_note(60, 1, 1, {"articulations": ["tenuto"]})

In practice, the ability to define note properties in various different ways — and to combine these representations on the fly in a list — leads to considerable flexibility. Consider the following example, in which we create a NoteProperties object called harmonic that combines a harmonic notehead with a playback transposition up an octave. We then pass this object as part of a list of other note properties to the notes being played:

harmonic = NoteProperties("notehead: harmonic", "pitch + 12")
for i, pitch in enumerate(range(70, 79)):
    if i % 3 == 0:
        inst.play_note(pitch, 1, 1/3, [harmonic, "staccato", StartSlur()])
    elif i % 3 == 2:
        inst.play_note(pitch, 1, 1 / 3, [harmonic, "staccato", StopSlur()])
    else:
        inst.play_note(pitch, 1, 1/3, [harmonic, "staccato"])

inst.play_chord([67, 79], 1.0, 1, "accent, fermata")

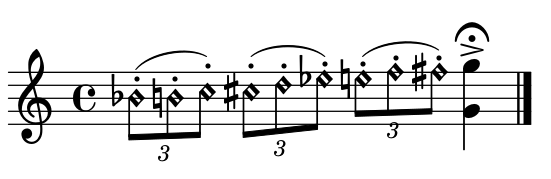

The result is that the notes with the harmonic sound an octave higher, and the notation looks like this:

Below are examples for each kind of note property, along with an comprehensive catalog of all the possible playback modifications and notations that are possible in SCAMP.

Articulations | Notations | Noteheads | Spanners | Dynamics | Staff Text | Playback Adjustments | Spelling Policy | Voices | Extra Playback Parameters

Articulations

To play a note with a staccato articulation, you can do any of the following:

inst.play_note(60, 1, 1, "staccato")
inst.play_note(60, 1, 1, "articulation: staccato")
inst.play_note(60, 1, 1, {"articulations": ["staccato"]})

Available articulations are: “staccato”, “staccatissimo”, “marcato”, “tenuto”, and “accent”.

Notations

To play a note with a fermata notation, you can do any of the following:

inst.play_note(60, 1, 1, "fermata")
inst.play_note(60, 1, 1, "notation: fermata")
inst.play_note(60, 1, 1, {"notations": ["fermata"]})

Available notations are: “tremolo”, “tremolo1”, “tremolo2”, “tremolo3”, “tremolo4”, “tremolo5”, “tremolo6”, “tremolo7”, “tremolo8”, “down-bow”, “up-bow”, “open-string”, “harmonic”, “stopped”, “snap-pizzicato”, “arpeggiate”, “arpeggiate up”, “arpeggiate down”, “non-arpeggiate”, “fermata”, “turn”, “mordent”, “inverted mordent”, “trill mark”.

Noteheads

To play a note with an “x” as its notehead, you can do any of the following:

inst.play_note(60, 1, 1, "x")
inst.play_note(60, 1, 1, "notehead: x")
inst.play_note(60, 1, 1, {"noteheads": ["x"]})

If you want to play a chord with different noteheads for different pitches (for example when playing an artificial harmonic), you can do any of the following:

inst.play_chord([60, 65], 1, 1, "normal/x")
inst.play_chord([60, 65], 1, 1, "notehead: normal/x")
inst.play_chord([60, 65], 1, 1, {"noteheads": ["normal", "x"]})

Available noteheads (based on the MusicXML standard) are: “normal”, “diamond”, “harmonic”, “harmonic-black”, “harmonic-mixed”, “triangle”, “slash”, “cross”, “x”, “circle-x”, “xcircle”, “inverted triangle”, “square”, “arrow down”, “arrow up”, “circled”, “slashed”, “back slashed”, “cluster”, “circle dot”, “left triangle”, “rectangle”, “do”, “re”, “mi”, “fa”, “fa up”, “so”, “la”, “ti”, “none”. Any of these can be preceded by “open” or “filled”, e.g. “open triangle” or “filled diamond”.

Spanners

Spanners are notations that span multiple notes, so to create a spanner, you will need a start spanner attached to one note and a stop spanner attached to another note. For example, in order to play a slur over several notes you could do:

inst.play_note(60, 1, 0.5, "start slur")
inst.play_note(62, 1, 0.5)
inst.play_note(64, 1, 0.5, "stop slur")

This uses the string shorthand, but you can also start a slur in any of the following ways:

inst.play_note(60, 1, 0.5, StartSlur())
inst.play_note(60, 1, 0.5, "spanner: start slur")
inst.play_note(60, 1, 0.5, {"spanners": "start slur"})
inst.play_note(60, 1, 0.5, {"spanners": StartSlur()})

While slurs are pretty simple in nature, for other spanners you may need to specify text, positioning above or below the staff, and other details. These details can be provided as arguments to the relevant spanner class, or as additional words or phrases in the string shorthand. For example, to start a dashed text bracket specifying sul ponticello technique, you could do either of the following:

inst.play_note(60, 1, 0.5, StartBracket(text="sul pont.", line_type="dashed"))
inst.play_note(60, 1, 0.5, "start bracket dashed 'sul pont.'")

The following table lays out the different possible spanner types, and examples of their string shorthand.

Spanner Types

Spanner Type	Associated Classes	String Shorthand Example
Slur	StartSlur, StopSlur	“start slur”, “stop slur”
Phrasing slur	StartPhrasingSlur, StopPhrasingSlur	“start phrasing slur”, “stop phrasing slur”
Hairpin	StartHairpin, StopHairpin	“start hairpin >”, “start hairpin o< above”
Bracket	StartBracket, StopBracket	“start bracket dashed ‘sul pont.’”, “stop bracket”, “start bracket solid below”
Dashes	StartDashes, StopDashes	“start dashes ‘cresc.’”, “stop dashes”
Trill	StartTrill, StopTrill	“start trill”, “start trill flat”, “stop trill”
Piano pedal	StartPedal, ChangePedal, StopPedal	“start pedal”, “change pedal”, “stop pedal”

Spanner Labels

Lastly, it may on occasion be necessary to distinguish between multiple spanners of the same type. For example, the following is ambiguous:

inst.play_note(60, 1, 0.5, "start slur")
inst.play_note(64, 1, 0.5, "start slur")
inst.play_note(62, 1, 0.5, "stop slur")
inst.play_note(66, 1, 0.5, "stop slur")

Is it one slur inside of another slur, or two overlapping slurs? To specify which you mean, you can use a label. In string shorthand, this is done with a hashtag

inst.play_note(60, 1, 0.5, "start slur #OUTER")
inst.play_note(64, 1, 0.5, "start slur #INNER")
inst.play_note(62, 1, 0.5, "stop slur #INNER")
inst.play_note(66, 1, 0.5, "stop slur #OUTER")

On the other hand all spanner objects have a label argument. The following is equivalent:

inst.play_note(60, 1, 0.5, StartSlur(label="OUTER"))
inst.play_note(64, 1, 0.5, StartSlur(label="INNER"))
inst.play_note(62, 1, 0.5, StopSlur(label="INNER"))
inst.play_note(66, 1, 0.5, StopSlur(label="OUTER"))

NOTE: At this time, LilyPond does not allow multiple spanners of the same time in the same voice simultaneously, so in practice, labels will only work for MusicXML output. In the special case of slurs within slurs, however, you can use a regular slur and a phrasing slur.

Dynamics

You can attach a dynamic to a note in any of the following ways:

inst.play_note(60, 1, 1, "p")
inst.play_note(60, 1, 1, "dynamic: p")
inst.play_note(60, 1, 1, {"dynamics": ["p"]})

Dynamics can be any of the following: “f”, “ff”, “fff”, “ffff”, “fffff”, “ffffff”, “fp”, “fz”, “mf”, “mp”, “p”, “pp”, “ppp”, “pppp”, “ppppp”, “pppppp”, “rf”, “rfz”, “sf”, “sffz”, “sfp”, “sfpp”, “sfz”.

Staff Text

You can attach text to a note — such as technique or expressive text — in any of the following ways:

inst.play_note(60, 1, 1, "senza vib.")
inst.play_note(60, 1, 1, "text: senza vib.")
inst.play_note(60, 1, 1, {"texts": ["senza vib."]})
inst.play_note(60, 1, 1, StaffText("senza vib.")

Note that if you don’t explicitly state that the string you are providing is text, SCAMP will try to interpret it as one of the other possible note properties first. For example, the following will get interpreted as a staccato articulation:

inst.play_note(60, 1, 1, "staccato")

To attach the text “staccato” to a note, you have to be more explicit, e.g.:

inst.play_note(60, 1, 1, "text: staccato")
inst.play_note(60, 1, 1, StaffText("staccato"))

Bold and Italics

You can make the text bold or italic in a couple of different ways. The first is to use a scamp.text.StaffText object:

inst.play_note(60, 1, 1, StaffText("with emphasis", italic=True))
inst.play_note(60, 1, 1, StaffText("boldly", bold=True))
inst.play_note(60, 1, 1, StaffText("very boldly", italic=True, bold=True)

Alternatively, you can use markdown syntax for this effect

inst.play_note(60, 1, 1, "*with emphasis*")
inst.play_note(60, 1, 1, "**boldly**")
inst.play_note(60, 1, 1, "***very boldly***")

Note, however, that this will only work on the entire text, not on individual words, and that other markdown syntax is not supported.

Staff Placement

By default, text is placed above the staff. To place it below the staff, you have to use a StaffText object:

inst.play_note(60, 1, 1, StaffText("cresc.", italic=True, placement="below"))

Playback Adjustments

Sometimes, you want the playback of a note to differ from its notation. For example, a diamond notehead might represent a harmonic which should sound an octave (or some other interval) higher than notated. You can use the note properties argument to do this:

inst.play_note(60, 1, 1, "notehead: diamond, pitch + 12")

The string shorthand “pitch + 12” is equivalent to NotePlaybackAdjustment.add_to_params(pitch=12). You can pass a NotePlaybackAdjustment directly instead if you want:

inst.play_note(60, 1, 1, ["notehead: diamond", NotePlaybackAdjustment.add_to_params(pitch=12)])

In addition to pitch, volume and length can also be adjusted, and in each case you can do addition/subtraction, multiplication, or direct setting to a value. For example, to increase the volume of a note by a factor of 1.2 and set its playback length to 2.5, you could do:

inst.play_note(60, 1, 1, "volume * 1.2, length = 2.5")

These alterations could also be accomplished using scale_params() or set_params().

Note that changing note playback length does not change how long the play_note call blocks for. This is useful, for instance, if we want to create a legato effect, in which each note overlaps with the next:

for p in range(60, 70):
    inst.play_note(p, 1, 0.5, "length * 1.2")

Time-Varying Playback Adjustments

Lastly, it’s possible to use a list or expenvelope.envelope.Envelope in a playback adjustment to create a time-varying modification. For example, the following would play three notes with a forte-piano effect:

forte_piano_effect = NotePlaybackAdjustment.scale_params(volume=Envelope([1, 0.3], [0.2]))
inst.play_note(60, 0.5, 3, forte_piano_effect)
inst.play_note(60, 0.7, 3, forte_piano_effect)
inst.play_note(60, 1.0, 3, forte_piano_effect)

In the first note, e.g., the actual volume played would start at 0.5 and drop down to 0.15, since we’re using a playback adjustment that scales the original volume.

You can also use lists, which will get interpreted as envelopes, e.g.:

inst.play_note(60, 1.0, 4, "pitch + [0, 1, -1, 0]")

However, it should be noted that, by default, SCAMP stretches the resulting envelope to last for the duration of the note. This might not be desired in the case of the forte-piano effect above, where you want a crisp diminuendo, even for a long note.

Spelling Policy

A scamp.spelling.SpellingPolicy specifies how each pitch class should be spelled. (For example, MIDI pitch 61 could be spelled as a C# or a Db.) While you can set a default spelling policy for the whole session or for an individual part, you can also specify spelling on an individual note basis using the properties argument.

The following are equivalent:

inst.play_note(66, 1.0, 1, SpellingPolicy.from_circle_of_fifths_position(2))
inst.play_note(66, 1.0, 1, "key: D")
inst.play_note(66, 1.0, 1, "spelling: G lydian")
inst.play_note(66, 1.0, 1, "D major")

Spelling policy strings are interpreted according to scamp.spelling.SpellingPolicy.from_string(). If you want to directly specify whether a note should be spelled as a sharp or flat (rather than give a key signature), you can use the string “#” or “b”:

inst.play_note(61, 1.0, 1, "b")
inst.play_note(61, 1.0, 1, "#")

Voices

You can use the note properties argument to specify which voice a note should be placed in within a single staff. For example, this code:

inst.play_note(62, 0.5, 0.5, "voice: 1")
inst.play_note(60, 0.5, 0.5, "voice: 2")
inst.play_note(58, 0.5, 0.5, "voice: 2")
inst.play_note(62, 0.5, 0.5, "voice: 2")
inst.play_note(64, 0.5, 0.5, "voice: 1")
inst.play_note(62, 0.5, 0.5, "voice: 2")
inst.play_note(60, 0.5, 0.5, "voice: 2")
inst.play_note(64, 0.5, 0.5, "voice: 2")

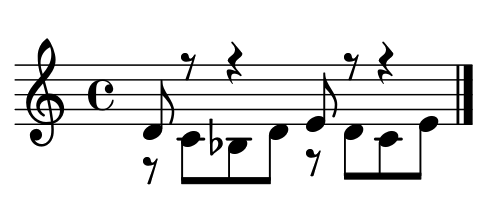

…produces the notation:

You can also use named voices, which get converted to numbered voices before exporting to notation. In the following example, the named voice “top_notes” gets assigned to voice 1, since it is the first available voice, while “bottom_notes” gets assigned to voice 2. The notational result is the same as the previous example.

inst.play_note(62, 0.5, 0.5, "voice: top_notes")
inst.play_note(60, 0.5, 0.5, "voice: bottom_notes")
inst.play_note(58, 0.5, 0.5, "voice: bottom_notes")
inst.play_note(62, 0.5, 0.5, "voice: bottom_notes")
inst.play_note(64, 0.5, 0.5, "voice: top_notes")
inst.play_note(62, 0.5, 0.5, "voice: bottom_notes")
inst.play_note(60, 0.5, 0.5, "voice: bottom_notes")
inst.play_note(64, 0.5, 0.5, "voice: bottom_notes")

Using named voices like this can be useful when the goal is to keep musically related material together in the same voice, bue the exact number of the voice is not important.

Extra Playback Parameters

In addition to pitch and volume, you can use SCAMP to control other parameters of sound, so long as your playback implementation knows how to make sense of it. For example, when you play notes via OSC messages to an external synthesizer (e.g. via new_osc_part()), you can use extra playback parameters to send OSC messages controlling vibrato, brightness of timbre, or any other aspect of sound production. The way we do this is through the properties argument. For example, the following will play a note with a vibrato frequency of 7 and a brightness that gradually diminishes from 1 to 0.

inst.play_note(62, 0.5, 5, "param_vibrato: 7, param_brightness: [1, 0]")

Note that the list [1, 0] gets converted into an Envelope that lasts for the same duration as the note itself. If we’re using an OSC part, this will result in messages of the form instrument_name/change_parameter/vibrato getting sent to the receiving synthesizer.

Although the above approach is probably the easiest way to set additional playback parameters, either of the following will have an equivalent effect:

inst.play_note(62, 0.5, 5, {"param_vibrato": 7, "param_brightness": [1, 0]})
inst.play_note(62, 0.5, 5, {"extra_playback_parameters": {"vibrato": 7, "brightness": [1, 0]}})

Ultimately, whichever way you do it, SCAMP ultimately converts it to the latter form.

Using Extra Parameters for MIDI CC

Although the default playback implementation in SCAMP uses the MIDI protocol to play notes using soundfonts, and therefore can’t understand parameters like brightness, you can use the extra playback parameters to send MIDI CC messages. When the playback implementation uses MIDI, SCAMP interprets any parameter name that is an integer between 0 and 127 as a control change. Not,e however, that all of the values given should be in the range from 0 to 1, which gets translated to a range from 0 to 127.

For example, since MIDI CC 10 controls pan, the following will play a note from the left speaker, a note from the right speaker, and then a note that oscillates between left and right:

violin.play_note(70, 0.8, 2, "param_10: 0")
violin.play_note(71, 0.8, 2, "param_10: 1")
violin.play_note(70, 0.8, 15, "param_10: [0, 1, 0, 1, 0, 1]")
